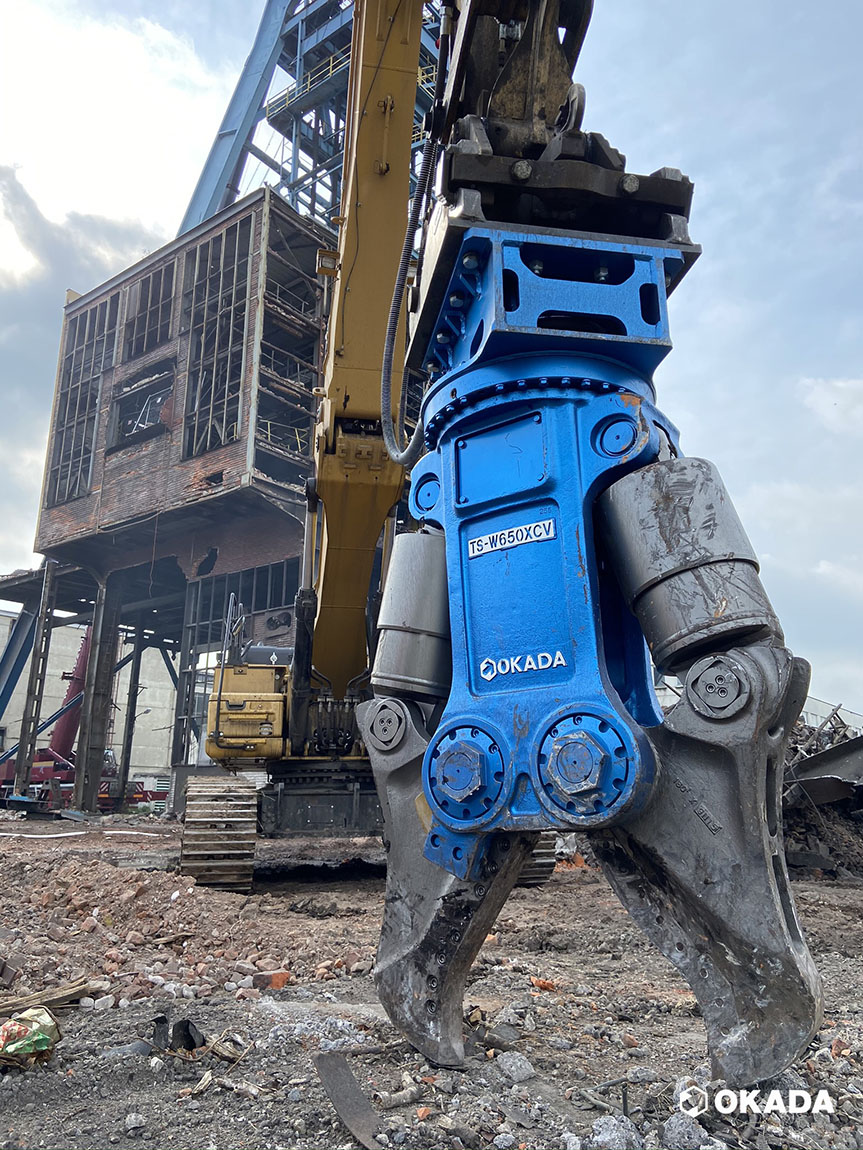

TS-W SERIES CROSS CUTTER – LEIKKURI / MURSKAIN
AVAA KUVAT KLIKKAAMALLA
Features
- The arched cutter blade provides robust cutting ability.
- The special casting alloy used delivers a lightweight crusher with superior durability.
- A high oil flow speed valve reduces cycle time.
- Strong rotator with a durable bearing.
| TS-W SERIES CROSS CUTTER | Unit | TS-W650XCV | TS-W900XCV |
|---|---|---|---|
| Rotation Type | FR/HR | FR/HR | |
| Operating Weight | kg | 2620/2680 | 4480/4480 |
| Overall Length | mm | 2370/2480 | 2880 |
| Overall Width | mm | 1350 | 1615 |
| Max. Jaw Opening | mm | 680 | 1615 |
| Cutter Blade Length | mm | 640 | 700 |
| Cutting Force (Center) | kN | 1500 | 2650 |
| Cutting Force (Tip) | kN | 800 | 1260 |
| Excavator Set Pressure | MPa | 35 | 35 |
| Speed Valve | YES | YES | |
| Suitable Carrier Range | Ton | 20-25 | 30-40 |
| Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount. | |||
AVAA PDF ESITE KLIKKAAMALLA

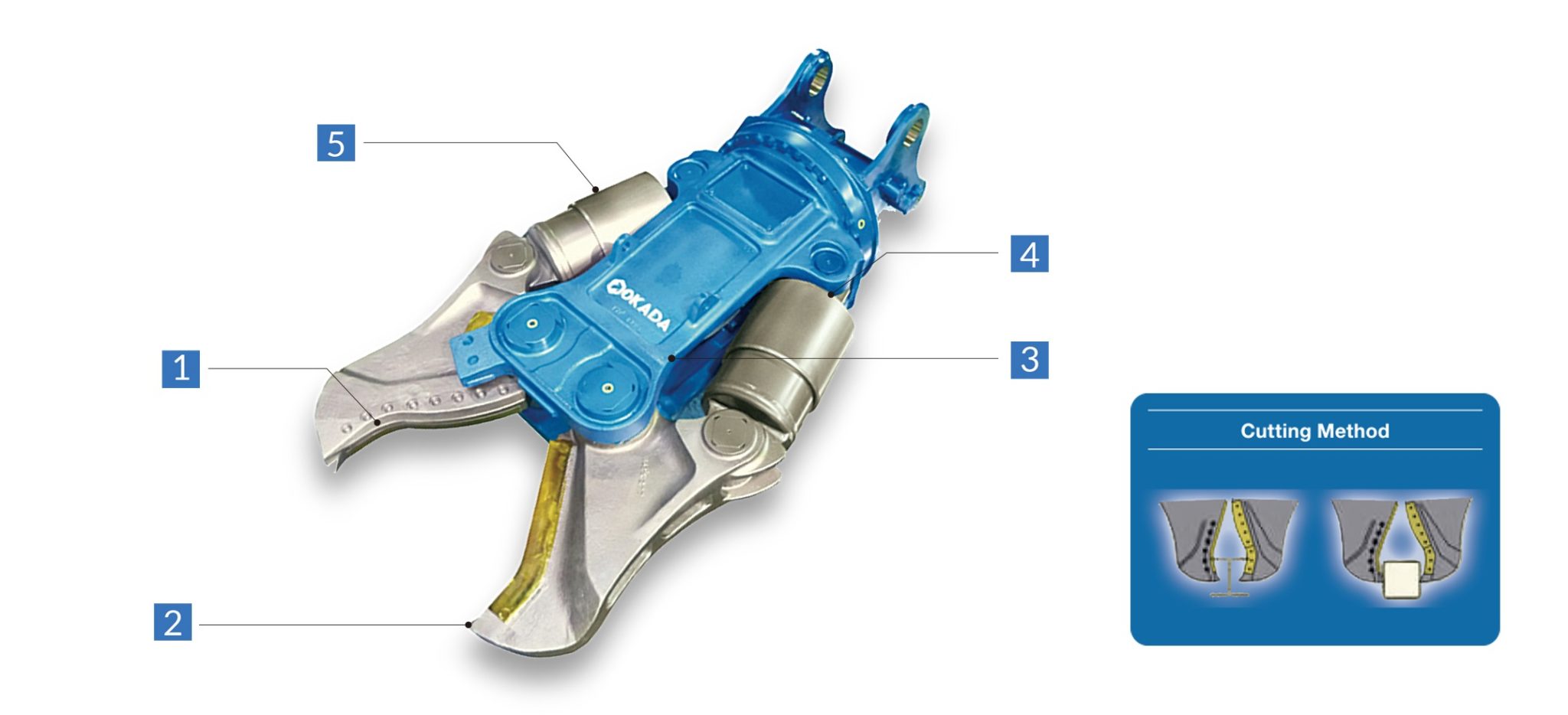

1. Cut loose obects
Able to cut loose objects on the ground.
2. Punch holes capability
The crossed cutter blades can punch a hole in the object, making it possible to cut objects bigger than the cutter blade length.
3. Special Casting Alloy
The special casting alloy used delivers a lightweight shear with superior durability.
4. High Oil Flow
A high oil flow speed valve reduces cycle time.
5. Strong Rotator
Strong rotator with a durable bearing.
