TS-W SERIES CUTTER – LEIKKURI / MURSKAIN
AVAA KUVAT KLIKKAAMALLA
Features
- The arched cutter blade provides robust cutting ability.
- The special casting alloy used delivers a lightweight crusher with superior durability.
- A high oil flow speed valve reduces cycle time.
- Strong rotator with a durable bearing.
| TS-W series CUTTER | Unit | TS-WB700CV | TS-WB800CV | TS-WB900CV | TS-WB1150CV |
|---|---|---|---|---|---|
| Rotation Type | FR/HR | FR/HR | FR/HR | FR/HR | |
| Operating Weight | kg | 4290/4290 | 5750/5750 | 8210/8210 | 11760/11760 |
| Overall Length | mm | 3050 | 3340 | 3880 | 4460 |
| Max. Jaw Opening | mm | 930 | 1050 | 1190 | 1600 |
| Overall Width | mm | 1650 | 1950 | 1940 | 2360 |
| Cutter Blade Length | mm | 700 | 800 | 900 | 1150 |
| Cutting Force (Center) | kN | 2710 | 3000 | 2460 | 3650 |
| Excavator Set Pressure | MPa | 35 | 35 | 35 | 35 |
| Speed Valve | YES | YES | YES | YES | |
| Suitable Carrier Range | Ton | 30-40 | 40-50 | 60-100 | 100-200 |
| Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount. | |||||
AVAA PDF ESITE KLIKKAAMALLA

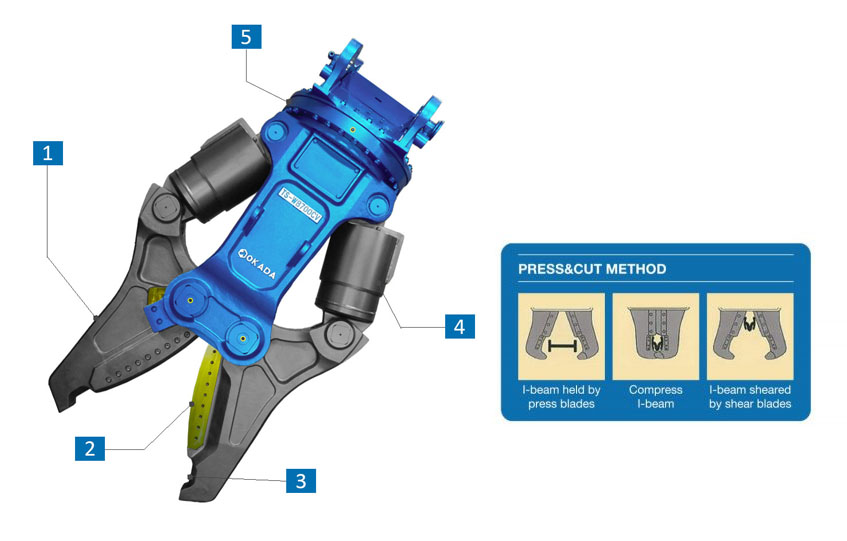

1. Special Cast Alloy
The special casting alloy used delivers a lightweight crusher with superior durability.
2. Robust!
Robust assembly.
3. Robust Cutting Ability
The arched cutter blade provides robust cutting ability.
4. High Oil Flow
High oil flow speed valve reduces cycle time..
5. Strong Rotator
Strong rotator with a durable bearing.
